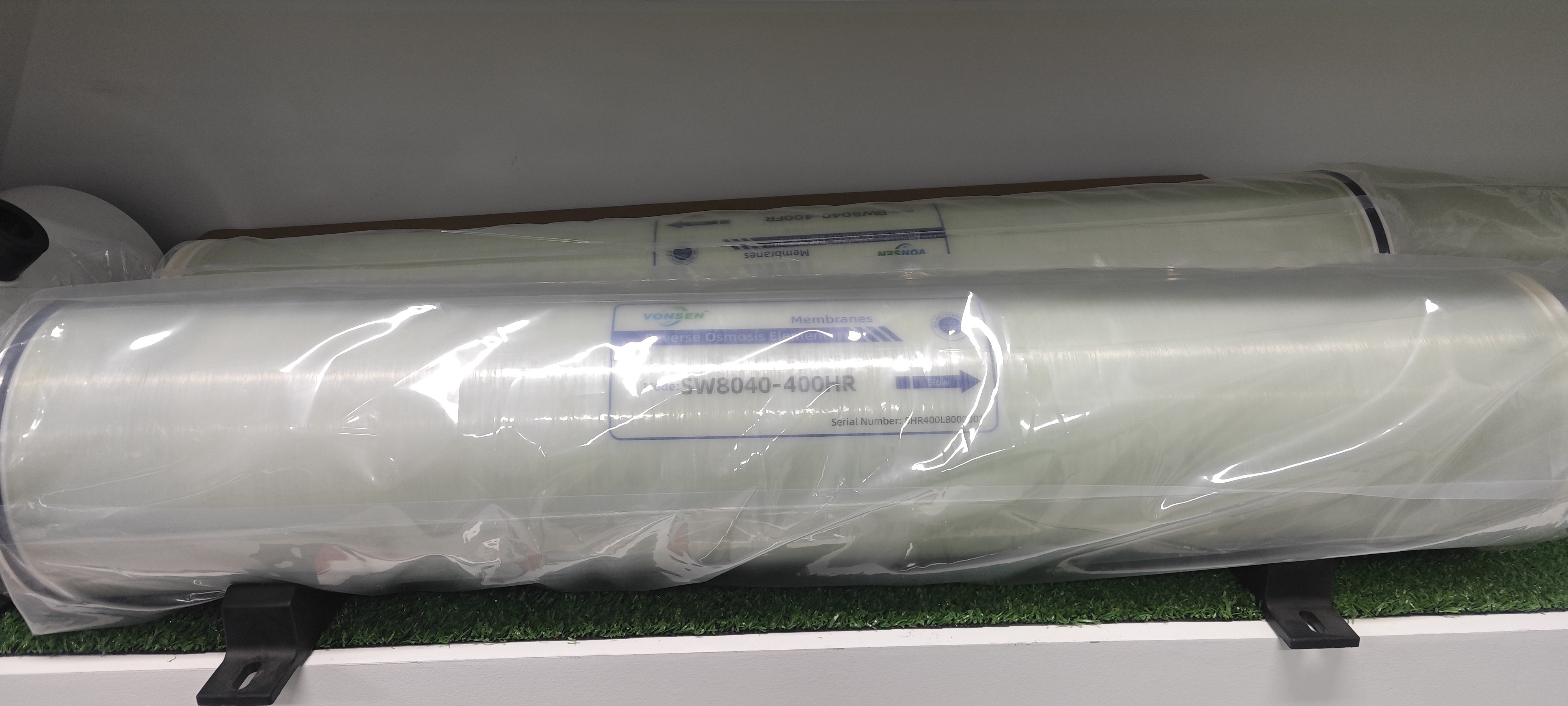

SW8040 RO membrane

SW-8040 RO membrane,PPM=10000-35000 MOQ=10PCS Delivery time within 10 days

Keywords : 2540

Classification :

PRODUCT DETAILS

SW series membranes are Craier's suitable for seawater desalination, high-concentration brackish water desalination, power plant boiler water replenishment and other industrial water treatment, and are suitable for the desalination of concentrated brine within 35000 PPM.

It has high pressure resistance, low operating cost, good desalination performance, and can ensure that drinking water can be obtained from seawater under high recovery conditions. It is suitable for coastal areas

ModelSW8040HR-400SW4040HR
Dimensions8inch4inch
Membrane materialAromatic polyamide composites
Effective membrane area400(37.2)90(8.4)
Inlet screen thickness28mil
Desalination rateAverage99.50%
Lowest

99.30%

Water output7500gpd
(28.4m³/d)
1600gpd
(6.1m³/d)
NaCL solution concentration, mg/L32000
Pressure, psi (MPa)800(5.25)
Temperature, °C25
Recovery rate of single membrane element, %8
Test solution pH6.5-7.0
Maximum inlet pressure, psi (MPa)1200PSI(8.28)
Maximum inlet temperature, °C45
Inlet pH range2-10
Cleaning PH range1-12
Maximum inlet turbidity, NTU1.0
Maximum inlet SDI<5
Maximum inlet residual chlorine concentration, mg/L<0.1
Minimum ratio of concentrated water to water output5;1
Maximum pressure drop of single element, psi (MPa)10(0.07)
